واحد نمایش: متریک (طبق صفحهٔ NSK)

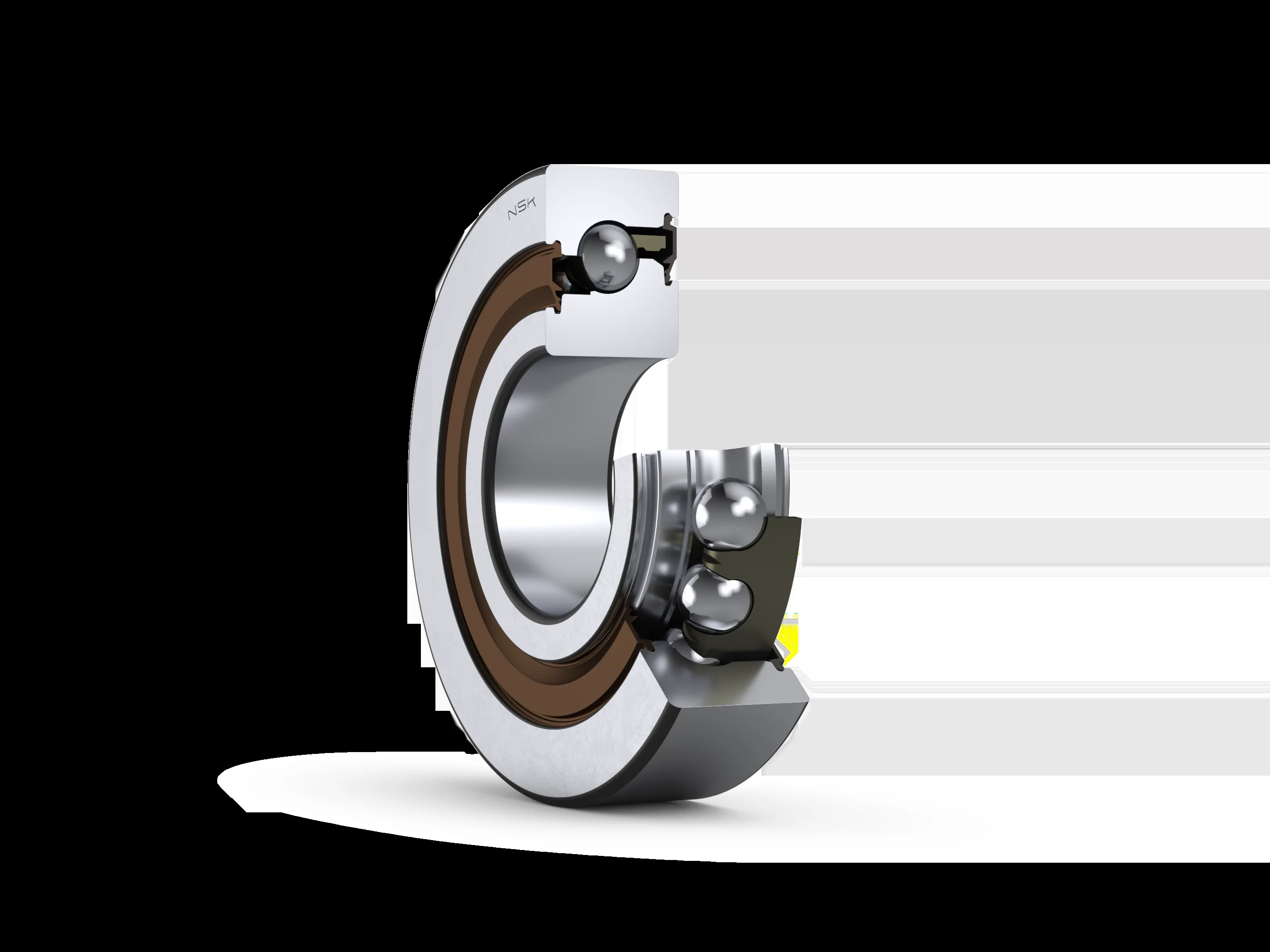

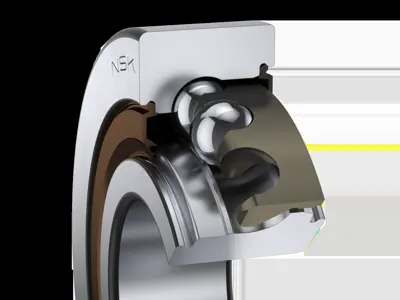

Designations
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| 55TAC100CDDG | |||
ابعاد مرزی
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| d | 55 | mm | قطر سوراخ (محور) |
| D | 100 | mm | قطر خارجی |
| B | 20 | mm | عرض |
| r(min.) | 1 | mm | Chamfer Dimension |
| r1(min.) | 0.6 | mm | Chamfer Dimension |
ظرفیت بار پایه
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| Ca(1row) | 79.0 | kN | Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa |
| Ca(2row) | 129 | kN | Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa |
| Ca(3row) | 171 | kN | Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa |
سرعت‌های حدی
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| Grease | 3000 | min^-1 | Limiting Speed (H-Preload) |
Dimensions
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| Contact Angle | 60° | ||
| db(min.) | 63 | mm | Diameter of Shaft Abutment |

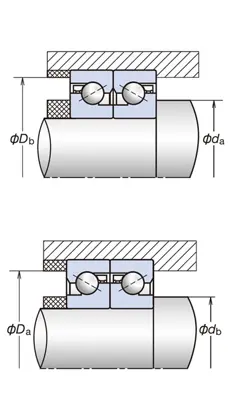

ابعاد shoulder و fillet
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| da(min.) | 63 | mm | Diameter of Shaft Abutment |
| Da(max.) | 91 | mm | Diameter of Housing Abutment |
| Db(max.) | 92 | mm | Diameter of Housing Abutment |
Performance
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| 1row | 104 | kN | Limiting Static Axial Load by Number of Rows Sustaining Fa |
| 2row | 208 | kN | Limiting Static Axial Load by Number of Rows Sustaining Fa |
| 3row | 310 | kN | Limiting Static Axial Load by Number of Rows Sustaining Fa |

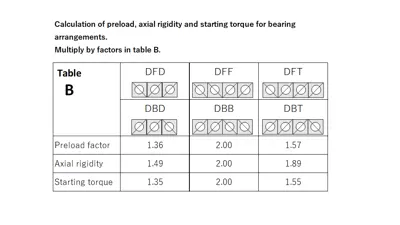

اطلاعات تکمیلی
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| H | -19 | μm | Measured Axial Clearance(DB and DF arrangement) |
| H | 0.42 | N・m | Starting Torque(DB and DF arrangement) |
| Recommended Grease Quantities | 9.5 | ||
جرم
| نماد | مقدار | واحد | شرح |
|---|---|---|---|
| Mass(approx.) | 0.714 | ||
